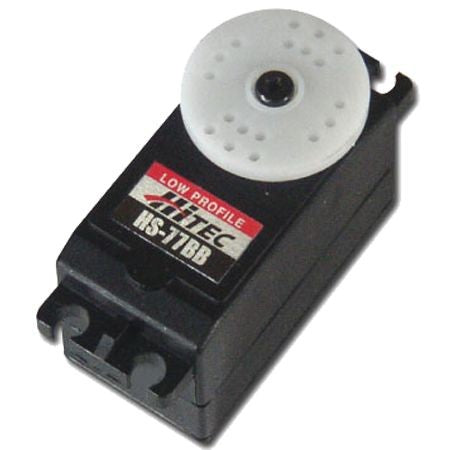

Overview With its low profile design and strong standing torque the HS-77BB is a great choice for wing or tail mounting in aircrafts up to 1.20 size. Submarines, boats, cars and trucks can also benefit from this servo’s strength and compact size. |
Specifications
Size Category:Specialty
Type:Analog
Application:Aircraft, 1/10th scale steering
Torque:61.1 oz/in (4.4kg/cm) @ 4.8V, 76.3 oz/in (5.5kg/cm) @ 6V
Speed:0.18 sec/60 deg @ 4.8V; 0.14 sec/60 deg @ 6V, at no load
Length:1.73 in (44.0mm)
Width:0.90 in (23.0mm)
Height:0.98 in (25.0mm)
Weight:1.23 oz. (35g)
Bushing Or Bearing:Bearing
Bearing:Single
Motor Type:3 Pole
Connector Type:Universal
Gear Type:Nylon
Current Draw Idle:8mA
Voltage:4.8V to 6.0V
Deadband:8µs
