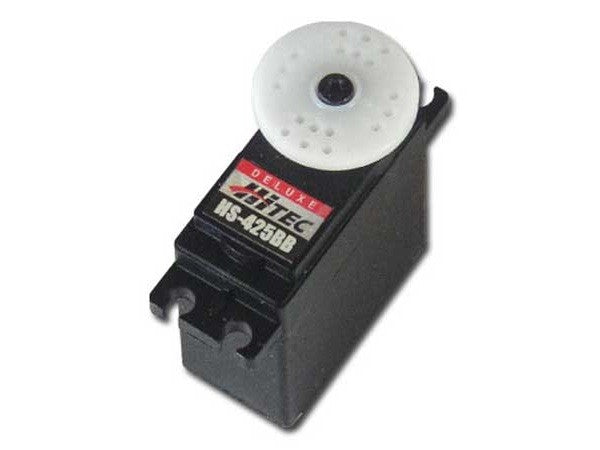

HS-425BB is offered with dual ball bearings, impact resin gears and high performance circuitry. As one of Hitec's longest running production servos, it has proven to be a durable and dependable product year after year.
Features
- Dual Ball Bearings
- High Performance Circuitry
- Resin Gears
Specification
Size Category:Standard
Type:Analog
Application:20-60 Size Aircraft; 30 Size Helicopters; Steering and Throttle for Cars, Trucks, Boats
Torque:45.8 oz-in (3.3kg-cm) @ 4.8V; 56.9 oz-in (4.1kg-cm) @ 6V
Speed:0.21 sec/60 deg @ 4.8V; 0.16 sec/60 deg @ 6V, at no load
Length:1.59 in (40.6mm)
Width:0.77 in (19.8mm)
Height:1.44 in (36.6mm)
Weight:1.60 oz (45.5g)
Bushing Or Bearing:Bearing
Bearing:Dual
Motor Type:3 Pole
Connector Type:Universal
Gear Type:Nylon
Current Draw Idle:8mA
Voltage:4.8V to 6.0V
Deadband:8µs
