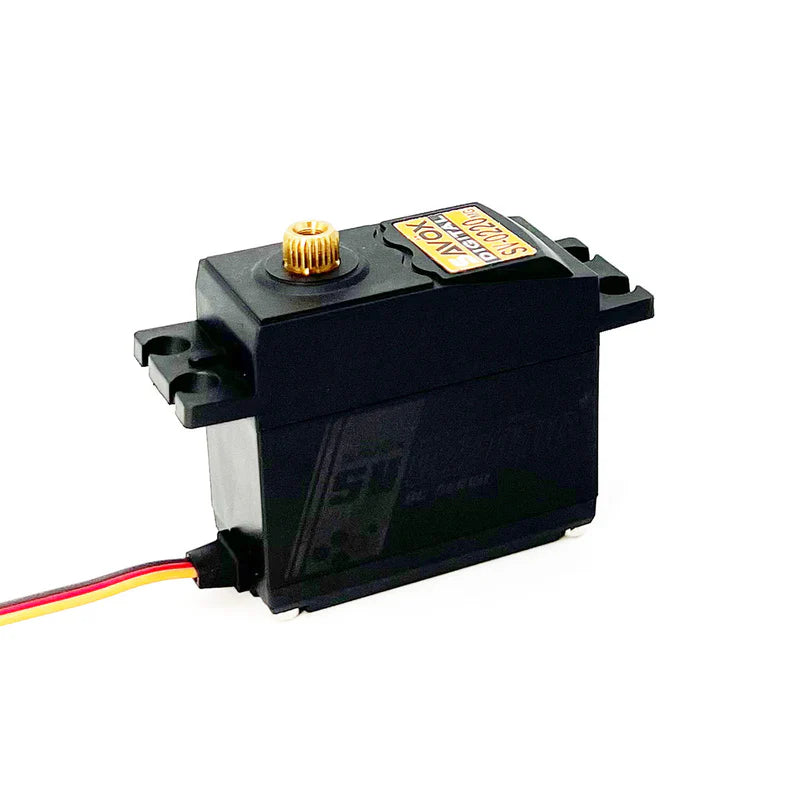

The Savox SV-0220MG is an affordable digital standard servo with metal gears, designed for high voltage operation.
"Plus" series servos feature Soft Start and Sanwa SSR compatibility.
Features:
Metal gear train ensures durability and longevity.
Capable of high voltage use.
Specifications:
Torque @ 6V - 6.5kg/90.3oz-in
Torque @ 7.4V - 8.0kg/111.1oz-in
Speed @ 6V - 0.16 sec/60 deg
Speed @ 7.4V - 0.13 sec/60 deg
Dimensions L x W x H (mm): 40.7 x 20.0 x 37.0
Weight: 59.0g
Details:
Operating Temperature: 14° - 122°F (-10° - 50°C)
Running Current (no load): 100mA @6.0V, 120mA @7.4V
Stall Current (at locked): 1500mA @6.0 V, 1800mA @7.4V
Idle Current: 5mA @6.0V, 5mA @7.4V
Wire Length: 250 ± 5mm
Output Gear Spline: 25 Tooth
Bearings: 1BB
Operating Travel: 120° (1000 → 2000 µ second)
Neutral Position: 1500 µ second
Pulse Width Range: 800 → 2200 µ second
Maximum Travel: Appx 164° (800 → 2200 µ second)
Refresh Rate: 240 Hz
Motor Type: Brushed
