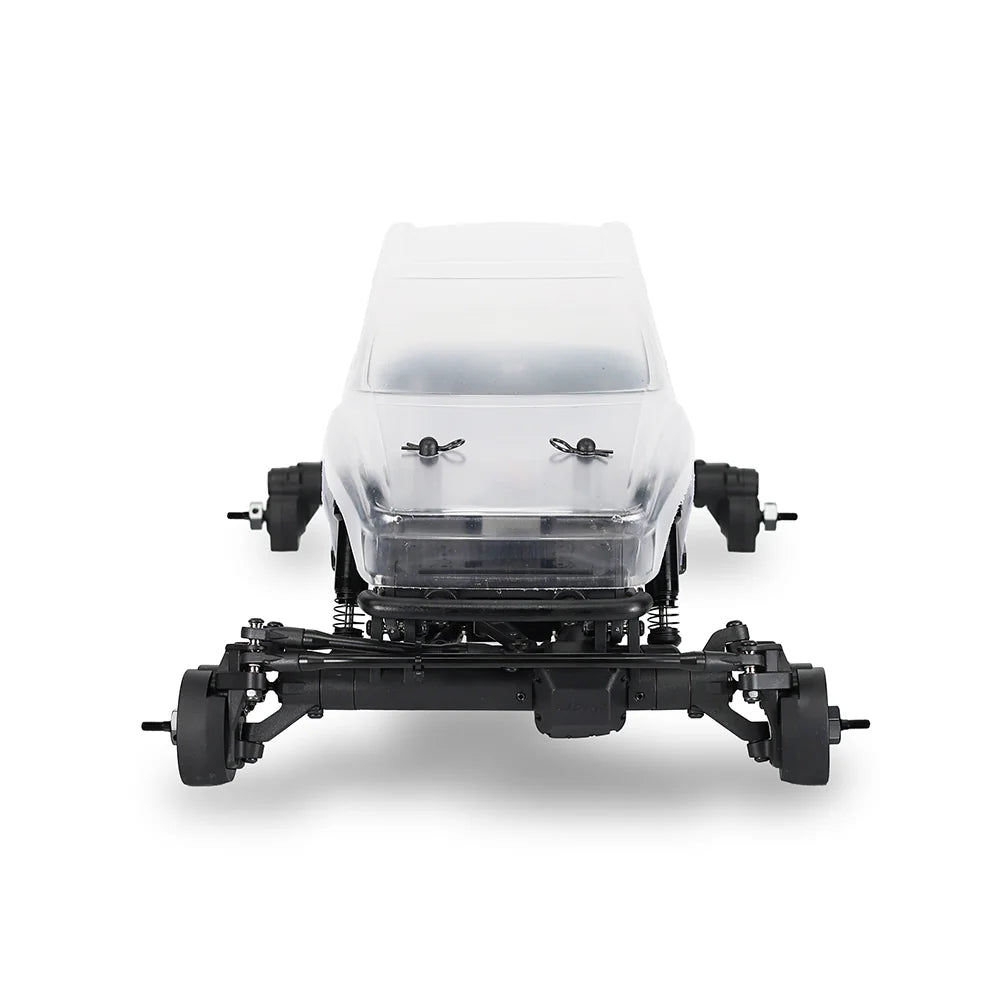

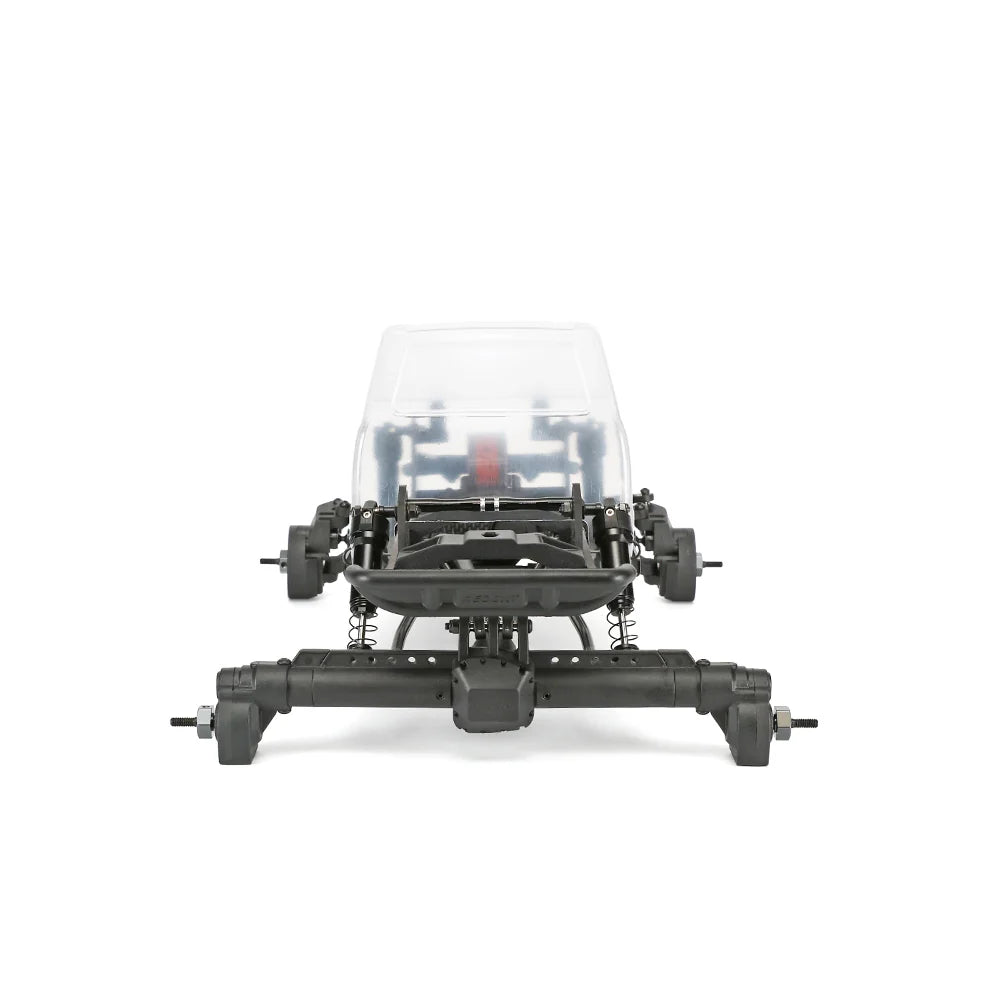

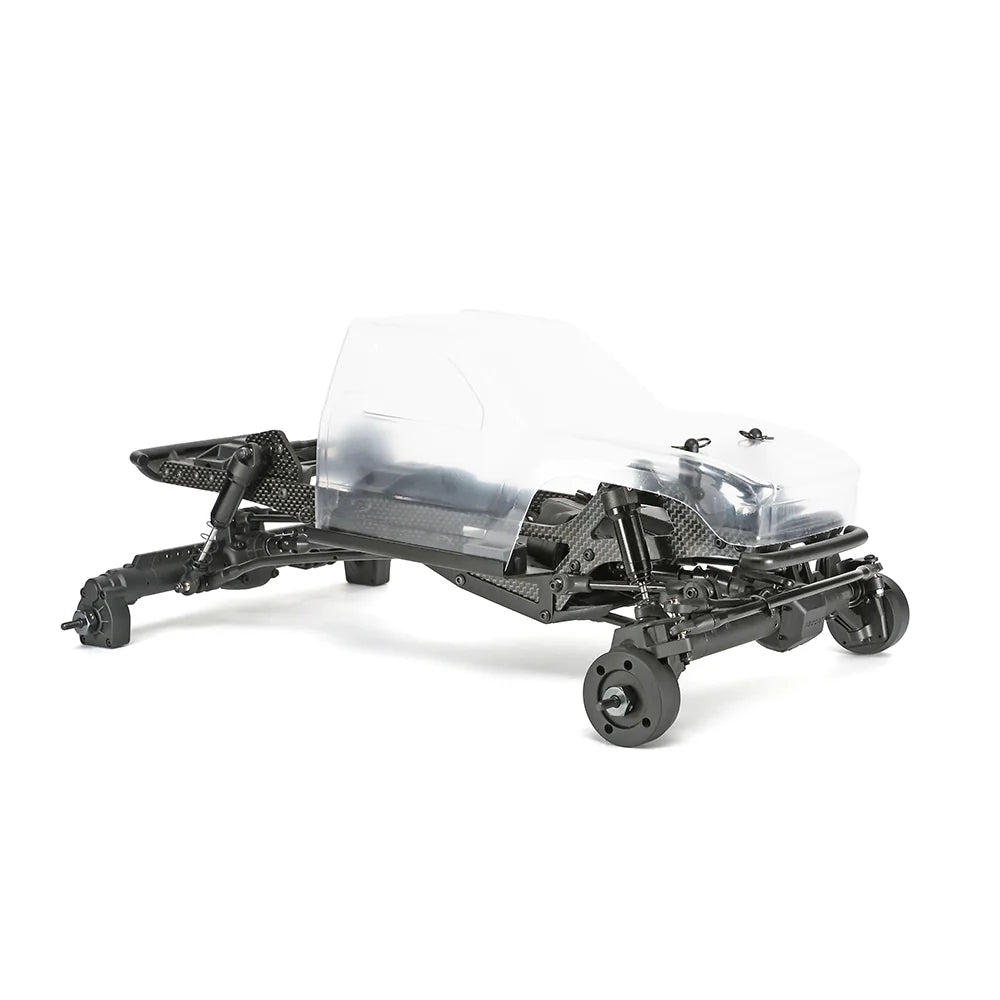

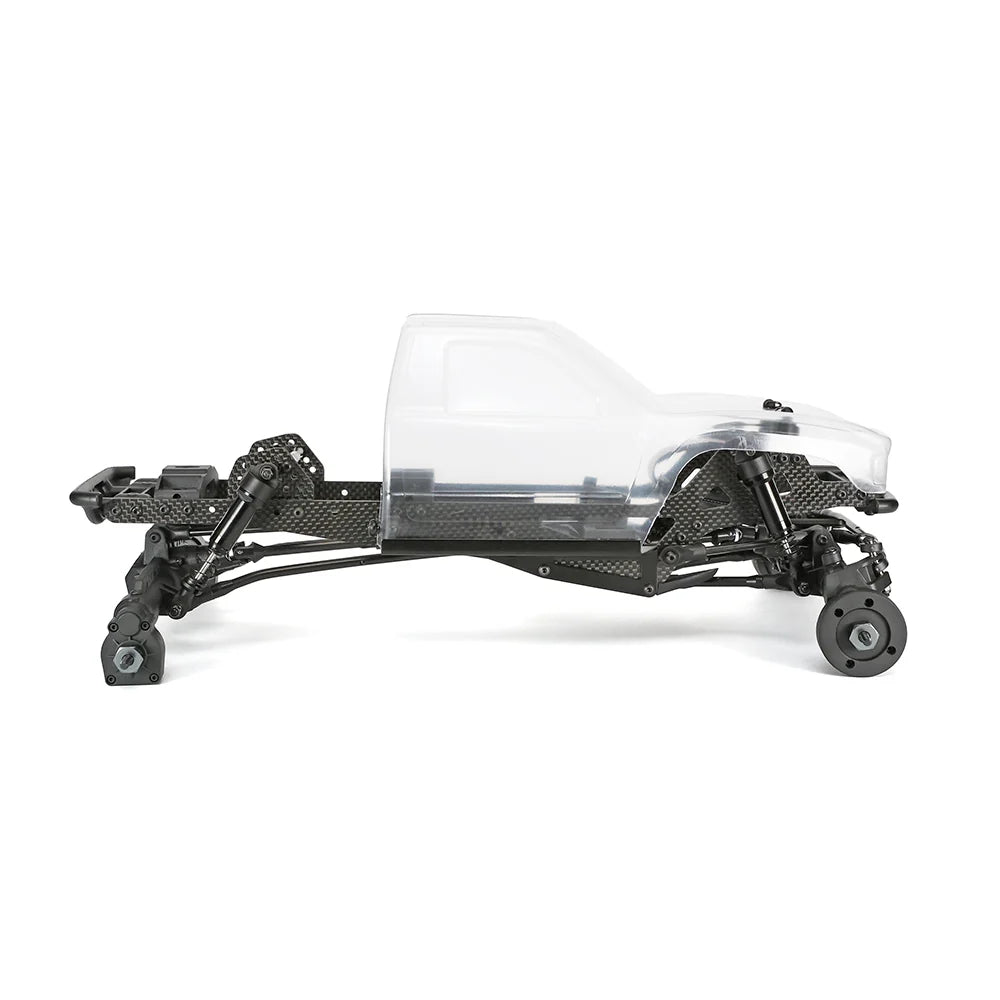

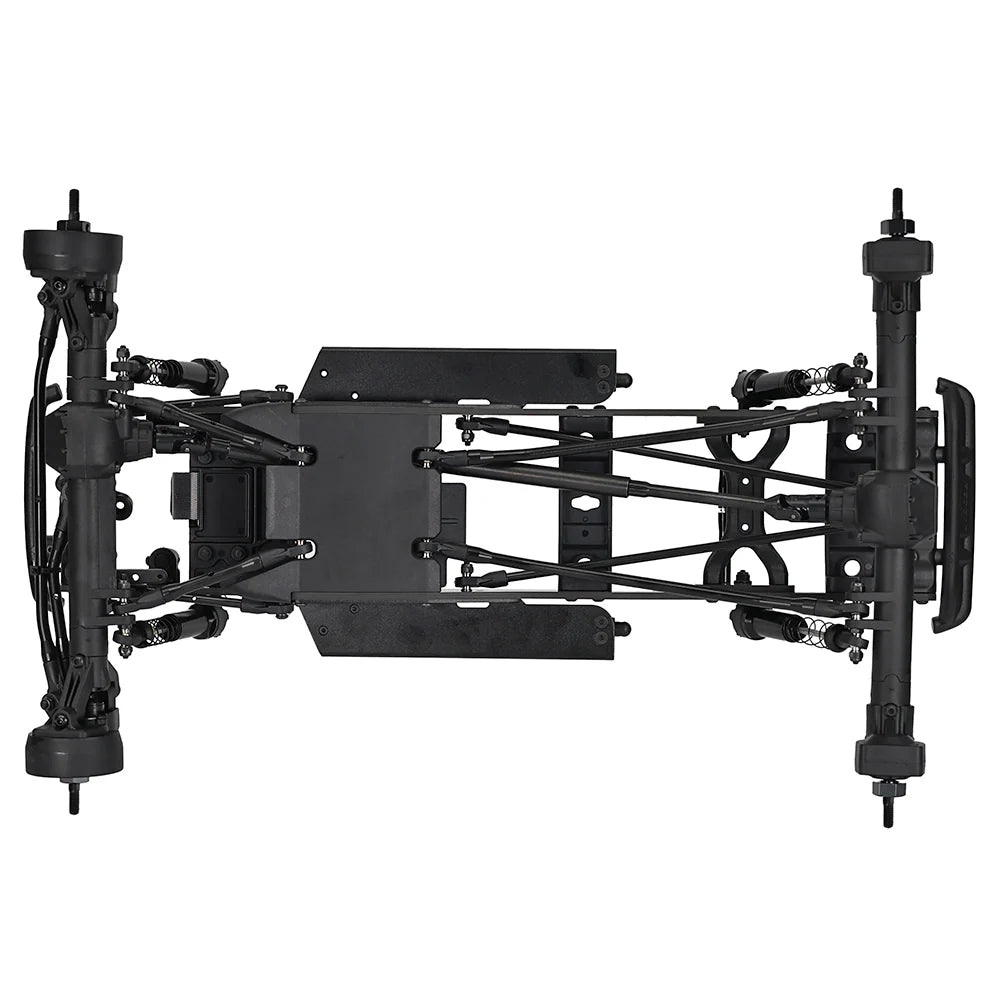

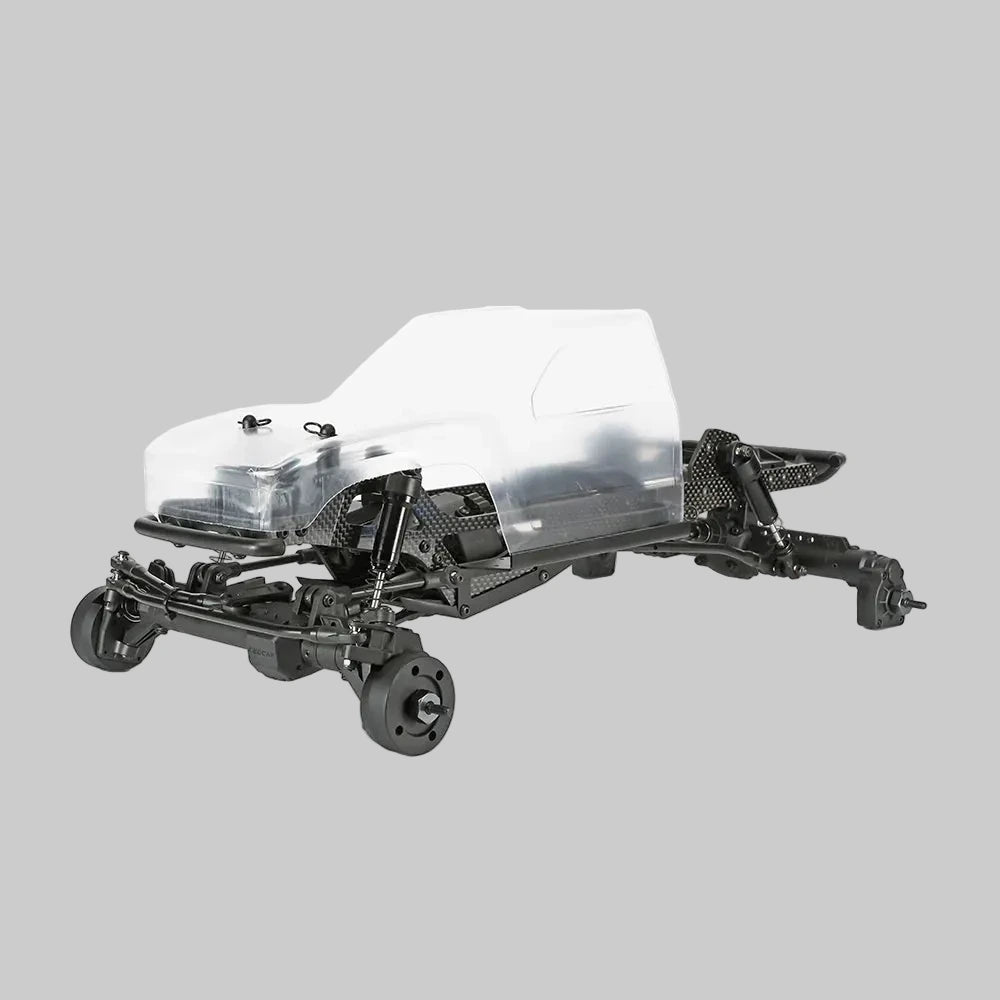

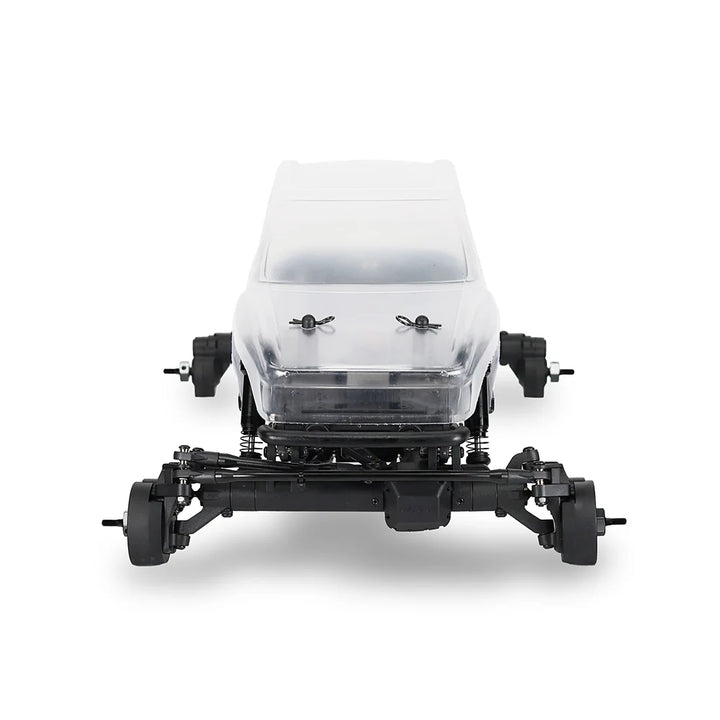

The Redcat Vertex-10W Slider is engineered for serious rock crawling with an extended-width stance that delivers stability and confidence on the most challenging terrain. Built with high-clearance portal axles, carbon fiber components, and precision steering, this 4WD kit is designed to conquer obstacles with style.

• Motor forward configuration with 10-degree skid plate
• 3mm carbon fiber chassis rails, shock towers, transmission case end plates, and servo mount
• Heavy-duty wide axles (228mm hex hub to hex hub) with steel front and aluminum rear inserts
• 3:1 portal gear ratio with 32% total overdrive and high-position hypoid-cut ring and pinion gears
• Weighted metal front outer portal box for durability
• Double CV joints for ultra-smooth articulation at extreme steering angles
• High-steer axles with 58 degrees of steering angle
• Oiled-filled air emulsion shocks
• Heavy-duty splined metal driveshafts with angled ends for obstacle clearance
• Tapered links and high-clearance rear links for smooth transitions and increased breakover angle
• Durable 3mm ladder frame for structural integrity
• Multiple battery mounting options for various pack sizes and balance preferences

Includes:

• 1:10 Scale Wide Axle Slider
• Fully Assembled
• Unpainted body with body decals

Required:

• Outrunner style motor (36mm diameter, 31mm max motor length)
• ESC
• Steering servo (25T, 20-24mm with horn included)
• Wheels and tires (5.25 x 2.2 recommended)
• Vehicle battery
• Battery charger
