Spektrum - A5080 MT/HS Mini Digital HV Servo

Spektrum SKU: SPMSA5080
Spektrum - A5080 MT/HS Mini Digital HV Servo
Spektrum - A5080 MT/HS Mini Digital HV Servo
Spektrum - A5080 MT/HS Mini Digital HV Servo
Spektrum - A5080 MT/HS Mini Digital HV Servo
Spektrum - A5080 MT/HS Mini Digital HV Servo

Spektrum - A5080 MT/HS Mini Digital HV Servo

Spektrum SKU: SPMSA5080
Regular price $49.99
/
  • In stock, ready to ship
  • Inventory on the way

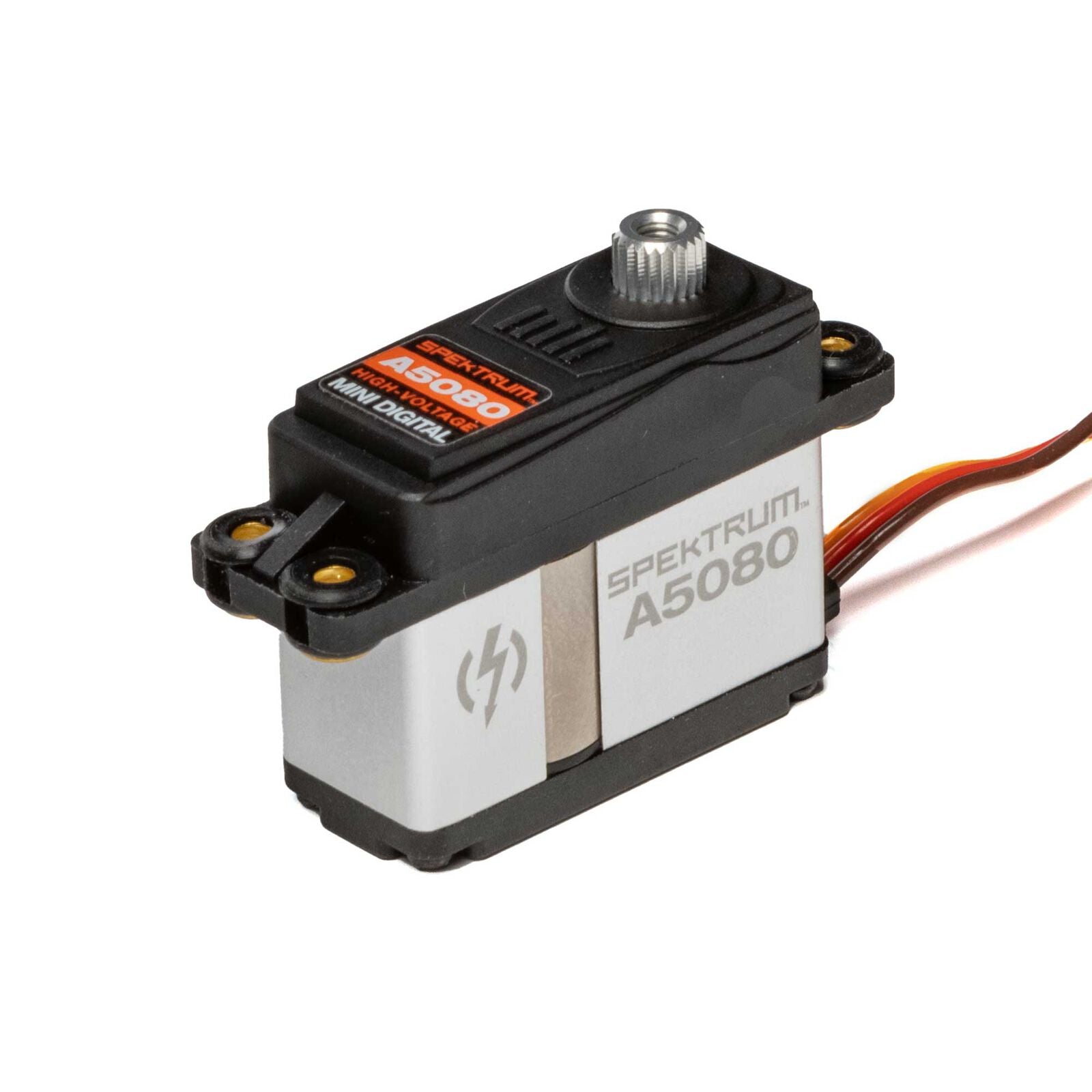

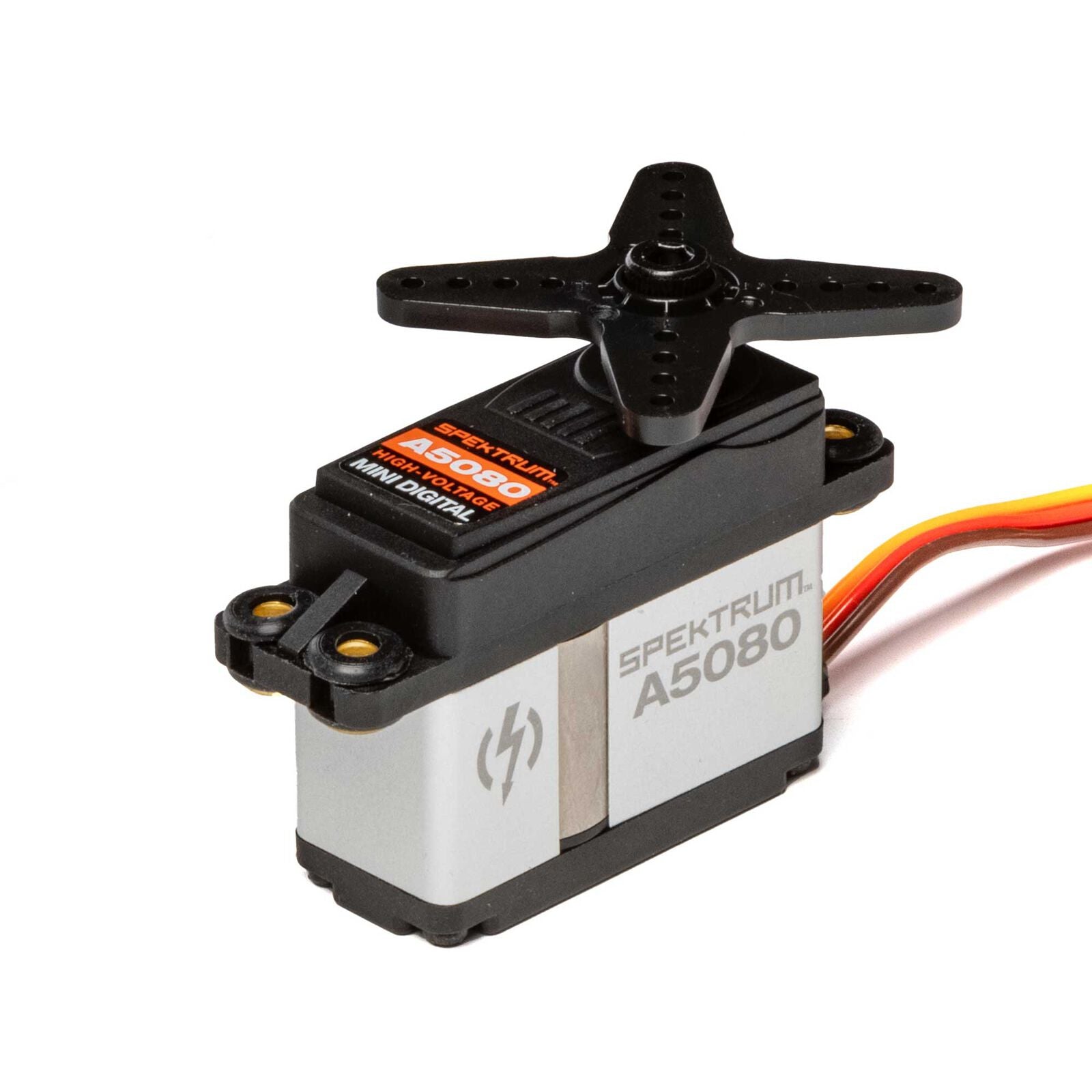

The Spektrum™ A5080 digital mini metal gear servo offers incredible performance for smaller sport size aircraft (25-32 size) and specialty aircraft applications. High voltage capable, the A5080 can produce 9.4kg-cm (130 oz-in) of torque at 0.094 sec/60° speeds with 8.4V input. Its low-wear, metal gear drive train is powered by a coreless motor and bearing supported for smooth operation. The A5080 also features an aluminum center section case for efficient heat dissipation, plus low deadband and high resolution. Like all Spektrum servos, the A5080 delivers reliability, consistency and performance that are second to none.

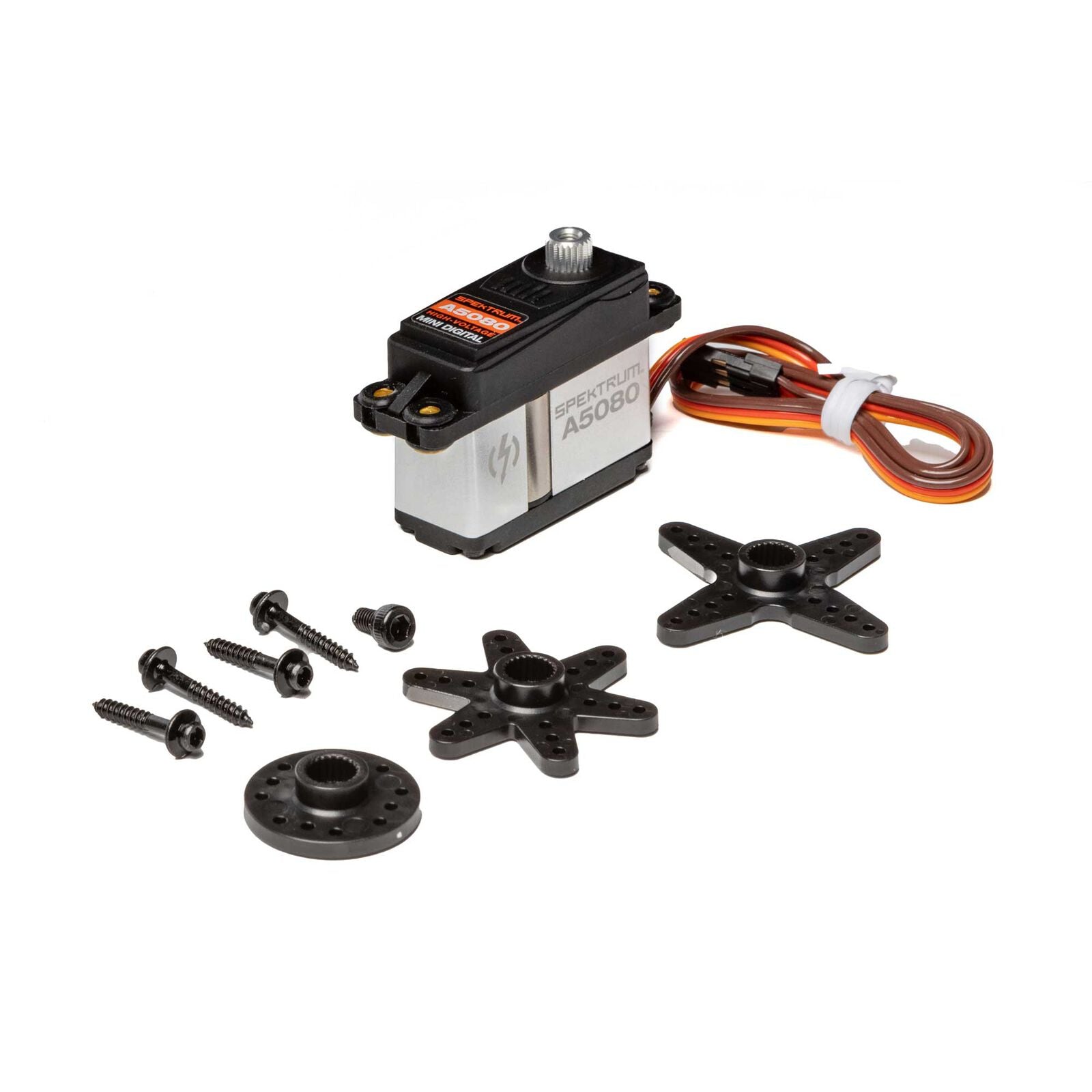

Includes

  • 1 A5080 Mini Digital Servo
  • 4 Pre-installed Mounting Grommets and Eyelets With Hardware
  • 3 Plastic Servo Arms and (1) Screw

Features

  • High Voltage (HV) capable (4.8 8.4v input range)
  • Mini size is perfectly suited for parkflyer and sport size model aircraft
  • Class leading performance (9.6kg cm and .094 sec/60° @8.4v)
  • Aluminum servo case helps keep operating temperatures low
  • Low wear and tightly meshed all metal gear train
  • Bearing supported drive train helps maximize smooth operation
  • Over Current and Temperature protection
  • Operating Frequency: 200hz to 333hz

Specs

Application Airplane
Bearing Single BB
Bushing Or Bearing Bearing
Connector Type Universal
Deadband <1µs
Gear Type Metal
Input Voltage 4.8V-8.4V
Maximum Servo Speed 0.14 sec/60 deg @ 6.0V; 0.11 sec/60 deg @ 7.4V; 0.094 sec/60 deg @ 8.4V
Maximum Servo Torque 110 oz-in (7.92kg-cm) @ 6.0V; 118 oz-in (8.5kg-cm) @ 7.4V; 130 oz-in (9.4kg-cm) @ 8.4V
Motor Type Brushed
Overload Protection No
Product Application Air

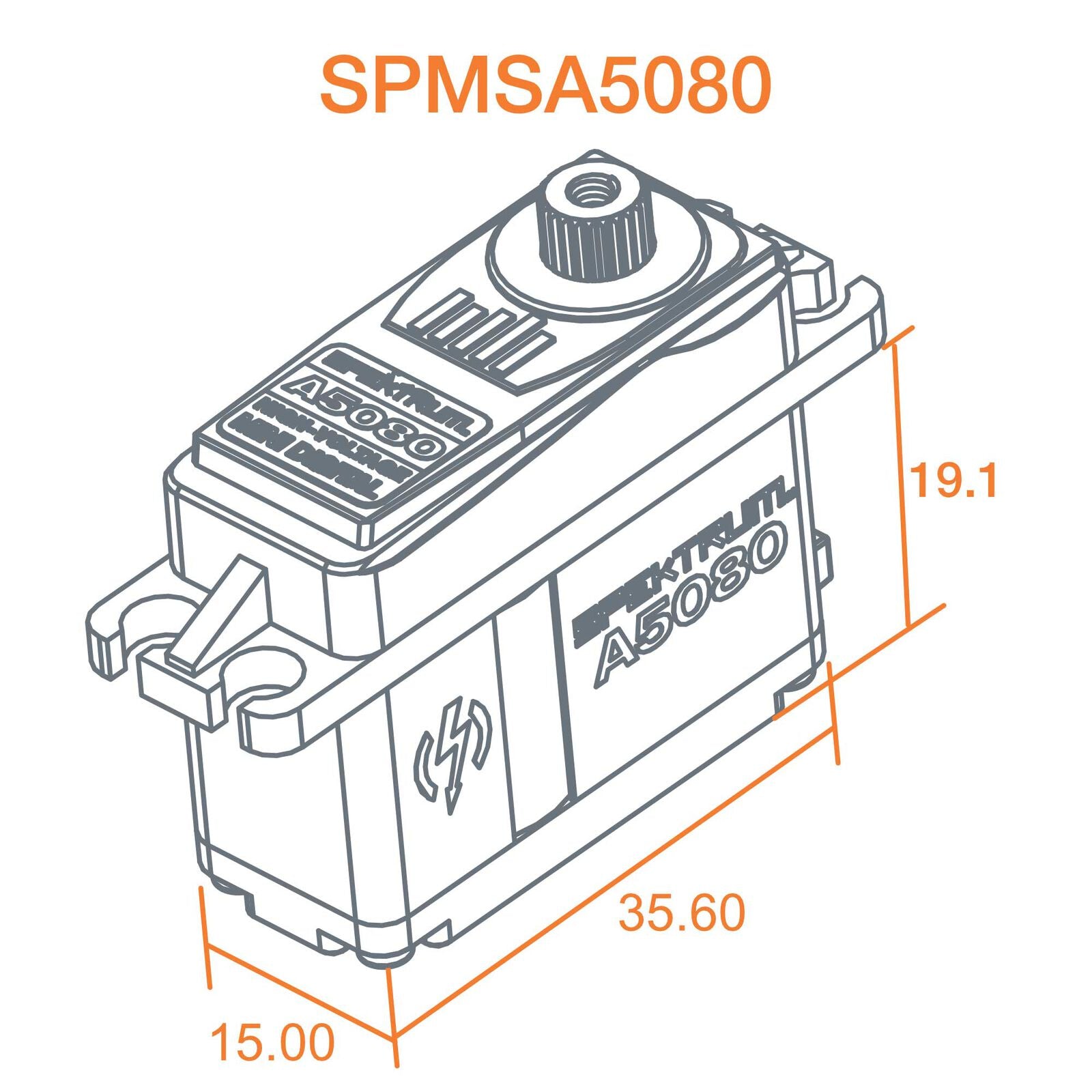

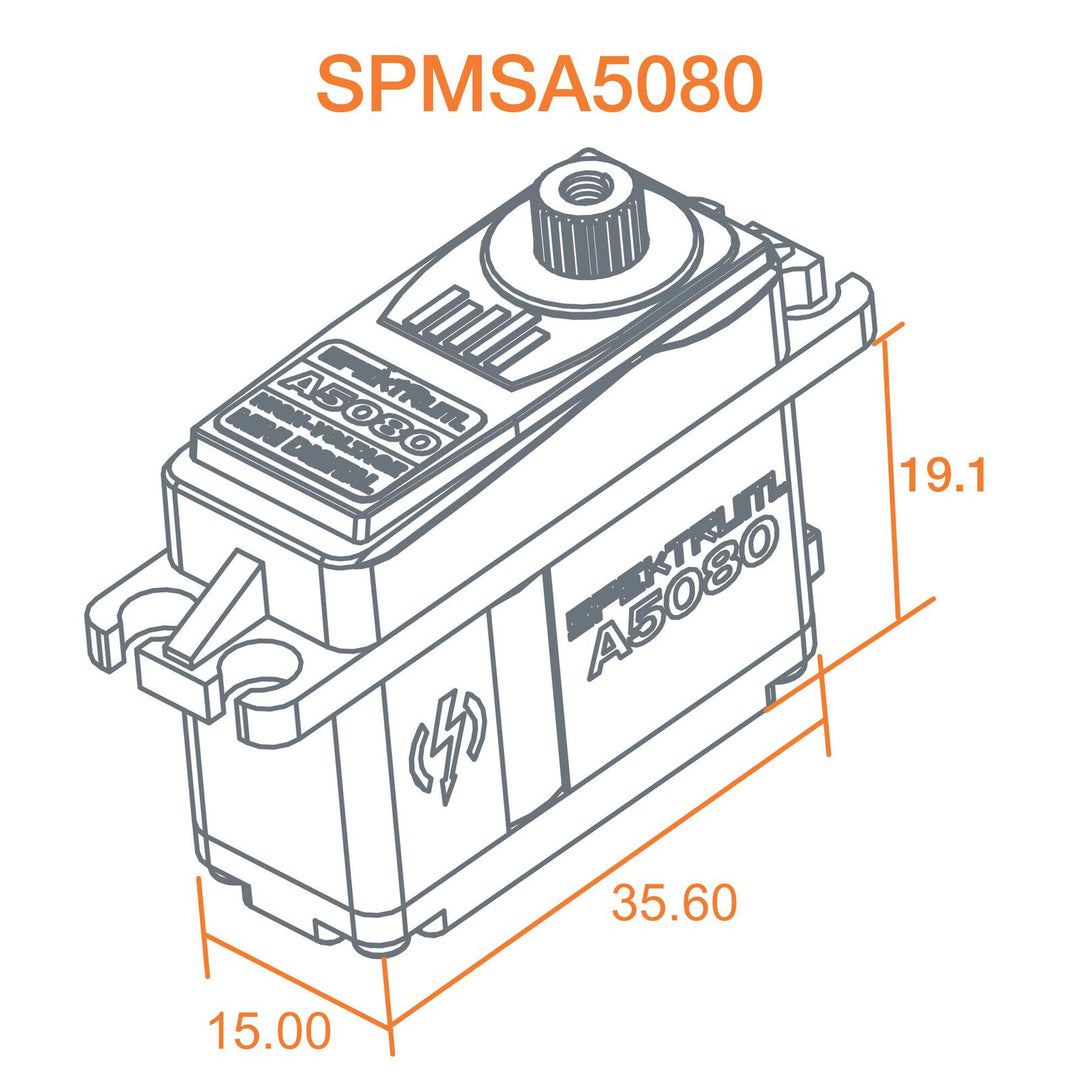

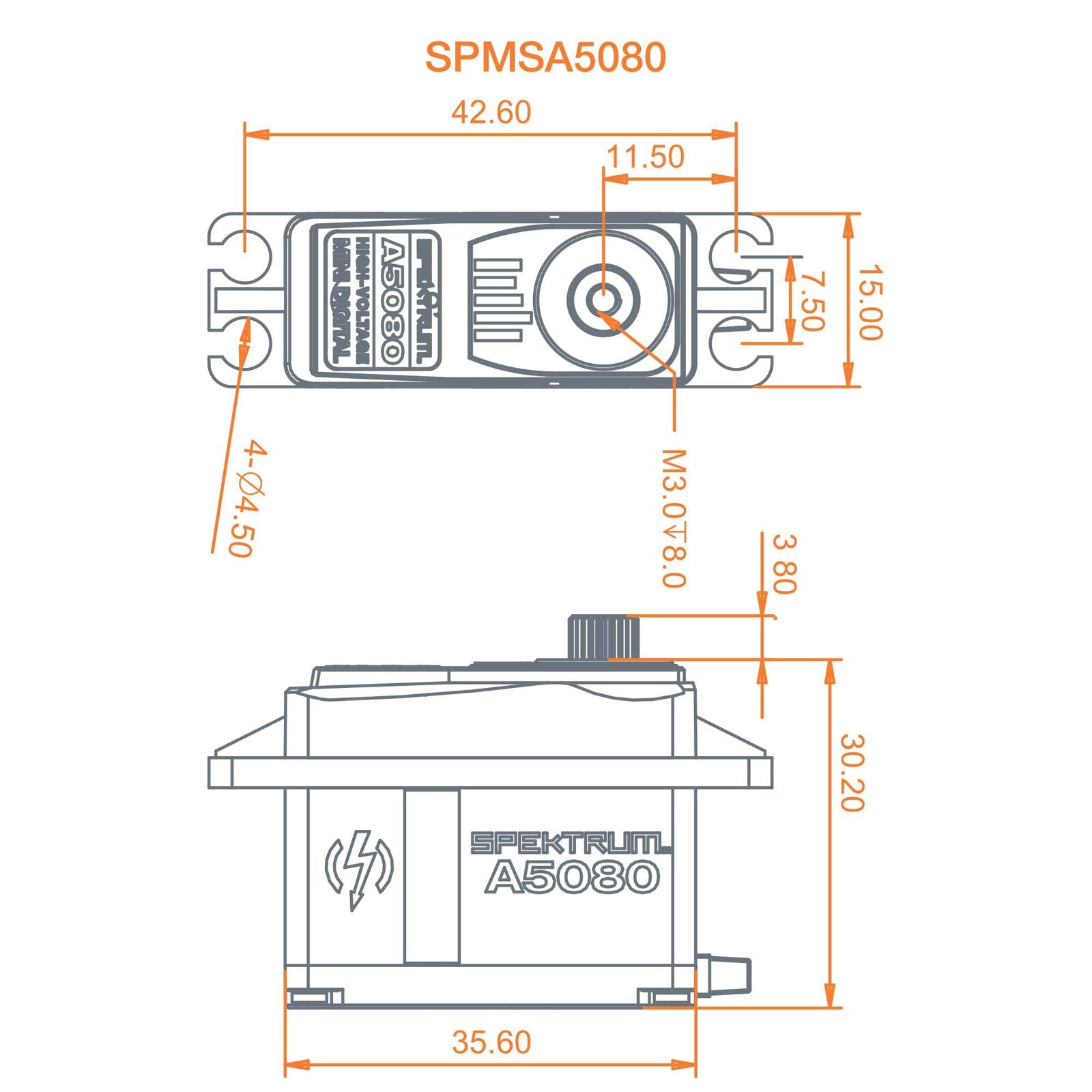

Product Height 1.18" (30 mm)
Product Length 1.4" (36 mm)
Product Weight 1.2 oz (34g)
Product Width 0.59" (15 mm)
Programmable No
Prop 65
Servo Operating Voltage 4.8 - 8.4V (HV)
Servo Size Category Mini
Servo Type Digital
Spline Count 23 - Tooth
Water-Resistant No
